FMCW System 500 Targets Low Altitude Surveillance Radar X-Band

Name: FMCW System 500 Targets Low Altitude Surveillance Radar X-Band
Brand: Chongqing Leikan Technology Co., Ltd
SKU: LKXR-XD120
Availability: InStock

Detail Produk:

Nama merek:	Lei Kan
Nomor model:	LKXR-XD120

Informasi Rinci

Nama merek:

Lei Kan

Nomor model:

LKXR-XD120

Pita frekuensi kerja:

X Band 9.8–10 GHz

Tinggi deteksi maksimum:

≥ 3000 m

Pantau jumlah target:

≥500 batch

Kecepatan Rotasi Antenna:

30 rpm (180 °/s) yang dapat ditingkatkan 60 rpm

Menyoroti:

High Light

Menyoroti:

FMCW low altitude surveillance radar

X-Band radar system

500 targets radar system

Informasi Perdagangan

Kuantitas min Order:

Syarat-syarat pembayaran:

L/C, D/A, D/P, T/T, Western Union, Moneygram

Deskripsi produk

Ⅰ. Overview

Low altitude surveillance radar is mainly used for low altitude and ground surveillance. The radar adopts digital beamforming technology, with low equivalent omnidirectional radiation power and high search data rate. The radar adopts adaptive clutter suppression technology and dense target detection pre tracking technology, with extremely low clutter false alarm rate. It can automatically track and build navigation for more than 500 batches of targets and output high-precision position information.

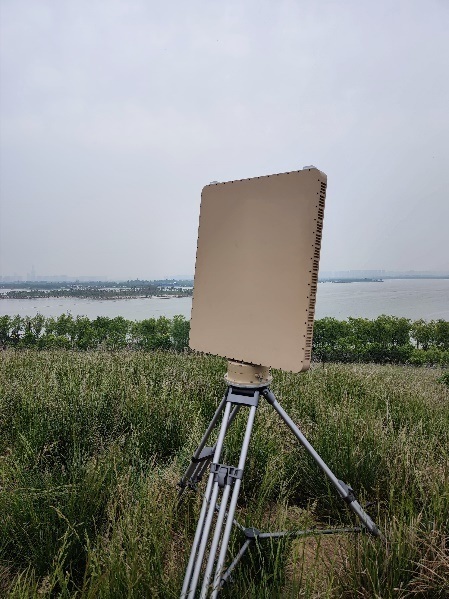

FMCW System 500 Targets Low Altitude Surveillance Radar X-Band 0

Ⅱ. Highlights

1. High precision;
2. Wide coverage;
3. Target discovery and tracking;
4. Digital beamforming system with high search data rate;
5. Wide detection speed range;
6. Excellent ability to suppress clutter false alarms.
7. Large airspace coverage, azimuth coverage range of 360 °, elevation coverage range>60 °;
8. Capable of indicating the coordinates and velocity information of active targets within the scanning range of the radar;
9. Capable of automatically indicating the target's motion trajectory;
10. Equipped with automatic clutter filtering function, it does not establish effective trajectories for ground clutter, water clutter, and meteorological clutter;
11. Capable of data recording and playback.

Ⅲ. Specifications

Parameter	Value
Frequency band	X-band 9.8–10 GHz
Elevation / Azimuth	–3°–60° / 0–360°
Detection range	≥10 km (quadcopter 0.01 m²)
	≥20 km (medium fixed-wing 1 m²)
Max altitude	≥3 000 m
Blind zone	≤50 m
Range/Angle accuracy	≤5 m (RMS) / ≤0.3° (RMS)
Simultaneous tracks	≥500
Tracking speed	1–150 m/s
Antenna rotation	30 rpm (upgradeable 60 rpm)
Data interface	Gigabit Ethernet UDP
Environmental	–40 °C to +55 °C IP65 (main unit IP67)
Power consumption	≤400 W
Weight	≤55 kg
Dimensions	650 × 815 × 93 mm
Transmit power	≤50 W

Ⅳ. Company Style

FMCW System 500 Targets Low Altitude Surveillance Radar X-Band 1
